| Brand Name: | CNLINKO |
| Model Number: | YT-RJ45-CPE-01-001 |
| MOQ: | 2 |
| Price: | US$5.21-10.42 |
Compliant with D registration or CAT3e according to EIA568B ISO/IEC11801 standards, compatible with CAT5e.
Multi-style connection design, 1/4 quick bayonet connection (YT01), quick plug (YT10).
The cable jacket has a rugged die-cast housing and a unique double clip cable sleeve.
The cable connector jacket can be used with the most common RJ45 plugs.
Waterproof and non-waterproof design, the product meets IP65/IP67 protection level when connected.
Shielding system - high frequency noise immunity and electromagnetic interference protection.
More Hot Products

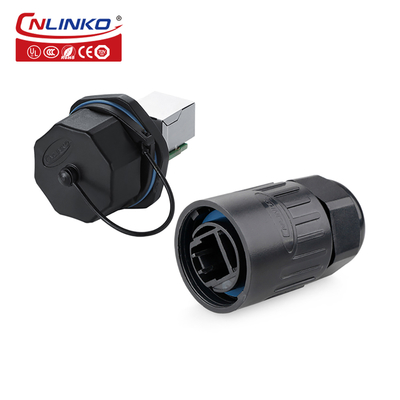

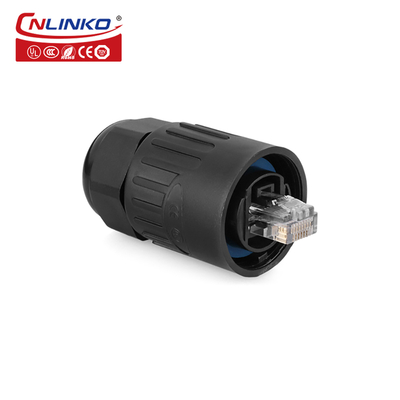

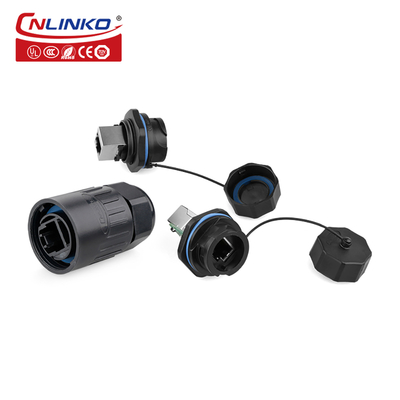

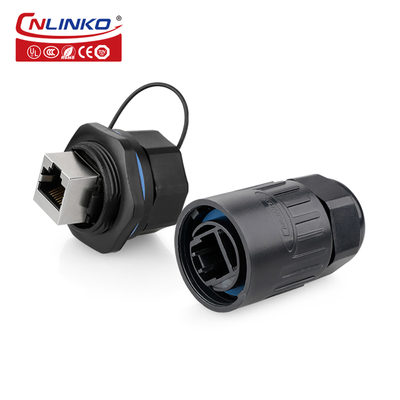

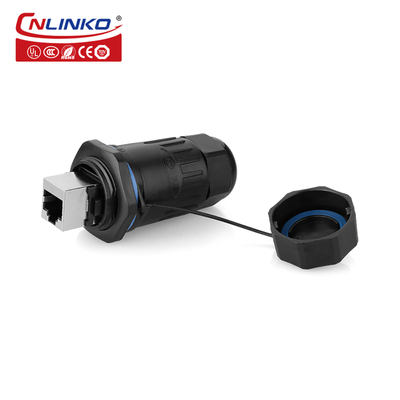

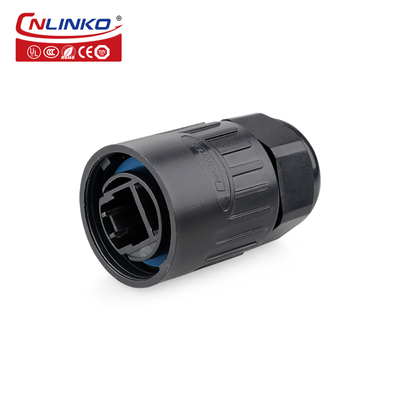

IP65 Waterproof Ethernet Connector RJ45 Female to Male Cat5 Network Cable RJ45 Cable Connector
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP67 |
| Cable specification | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty | 8 Pin |
| Current rating(A) | 5A |
| Operating voltage(AC.V.rms) | 500V |
| Withstand voltage(AC.V)1min | / |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥750 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Shell&insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| 1/4 bayonet connect; socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
