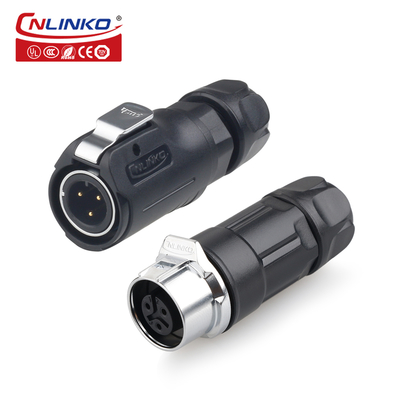

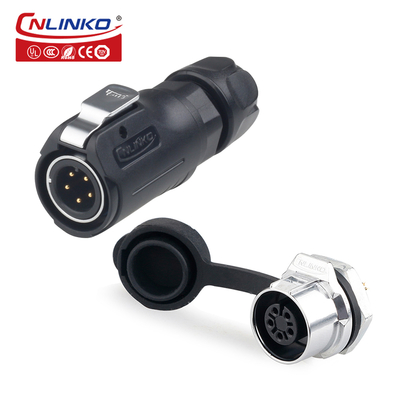

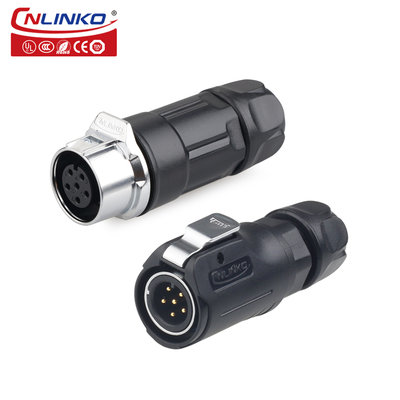

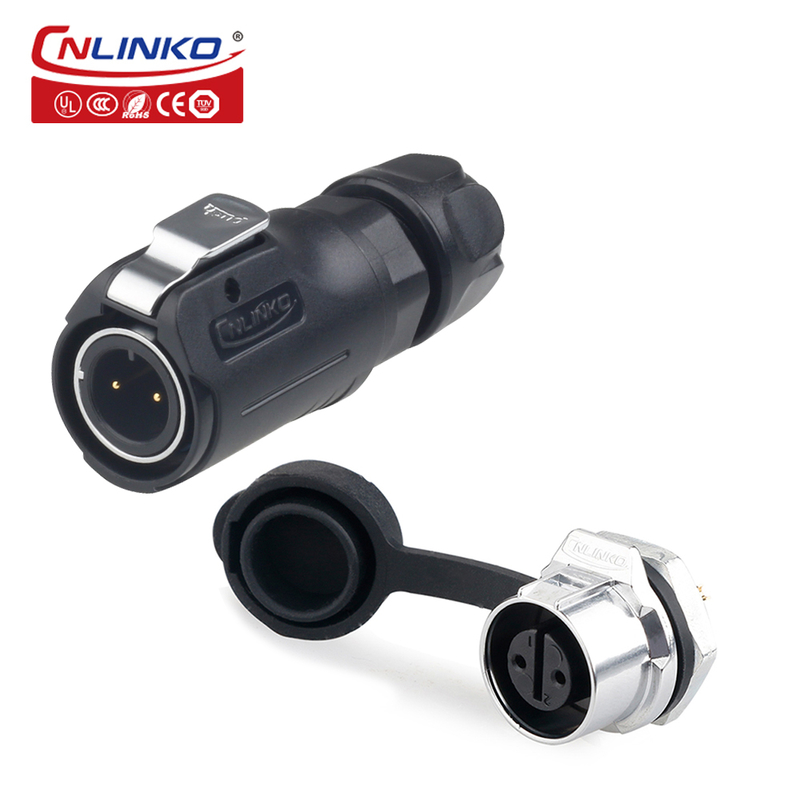

CNLINKO LP12 Plastic Male and Female Industrial Waterproof Pin M12 Connector

Brand Name:	CNLINKO
Model Number:	LP-12 semimetal
MOQ:	10

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Power

Application:

Industrial, Power

Gender:

Male And Female

Housing Material:

PBT

Product Name:

LP-12

Material:

PBT Plastic

Current Rating:

Wire Gauge:

22-20AWG

Protection Level:

IP65/IP67/IP68

Contact Diameter/Number Of Contact:

1.0x5

Operating Voltage:

250V

Temperature Rating:

-40℃-80℃

Product Description

- Multi-style inner core design (2-8 cores), in line with various industrial requirements, the signal and power supply are

compatible at the same time.

- Spring-pressed design, tightly docked, safe and secure.

- The orientation is strong, and blind insertion can be realized, and the humanized design in the true sense.

-3 core lock screws and solderable optional connection, fully compatible with outdoor installation work.

- Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in temperature rise

caused by current.

- Thermoplastic high temperature resistant plastic case, stable electrical performance, high strength, high temperature resistance

and corrosion resistance.

- Unique docking design, solid extension of infinite line length.

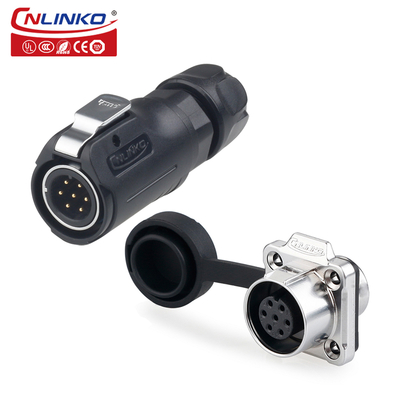

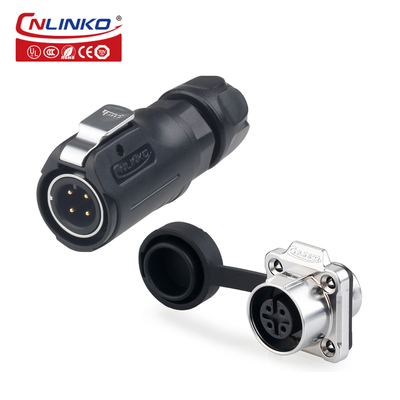

-Flange 4 hole mounting, stable and impeccable, threaded single hole housing installation, suitable for circular opening

industrial installation.

- The product complies with IP68 protection in the assembled state.
