| Brand Name: | CNLINKO |
| Model Number: | BD-20-C02PE-02-001A&BD-20-J02SX-02-401A |
| MOQ: | 10 |
| Price: | $6-7 |
1.All-plastic/all-metal / two styles are optional, which can meet the differentiated demands of anti-interference, high strength and high corrosion resistance in different scenarios;
2.Adopt one key press button locking method, plug and play, fast and convenient;Precision waterproof design,
with high waterproof level, no fear of wading environment;
3.Adopt high-strength structural materials, pressure-resistant structure design, can withstand greater vibration and shock.
|

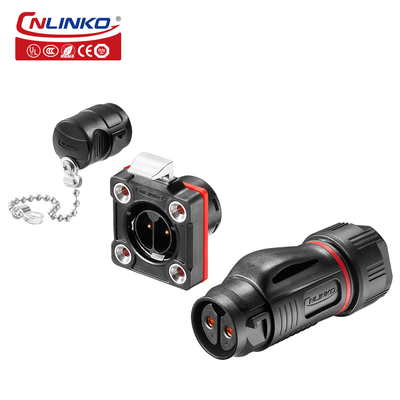

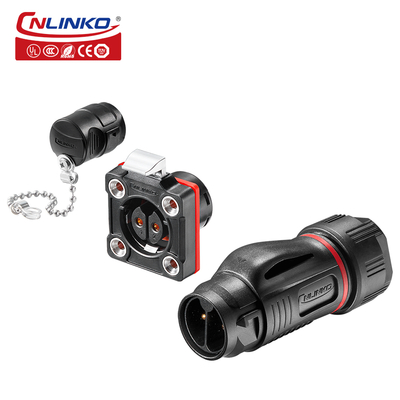

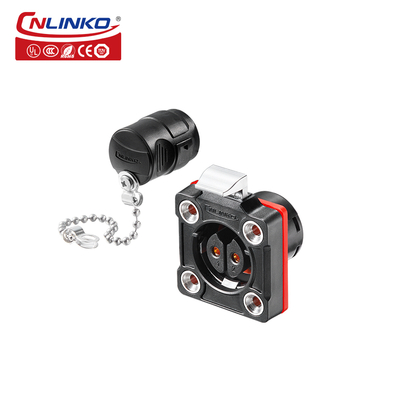

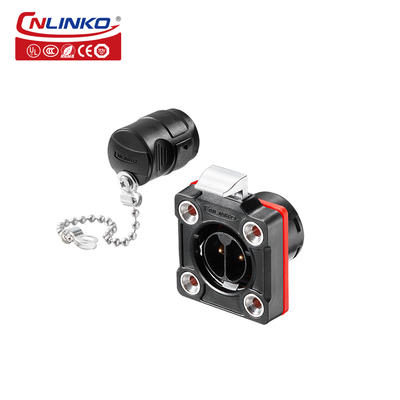

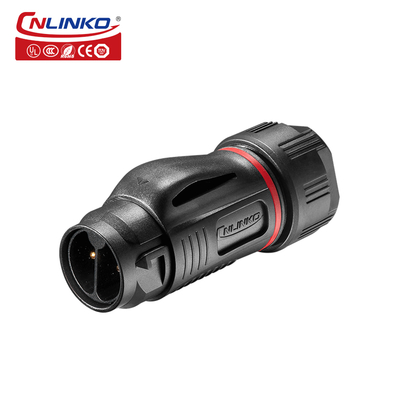

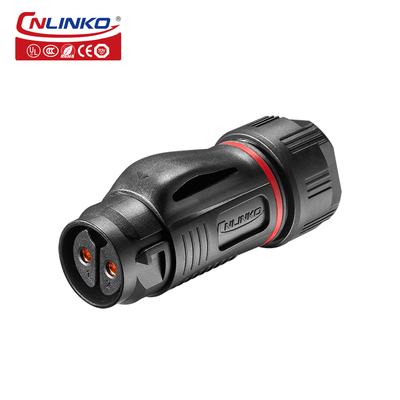

BD-20-C02PE-02-001A
BD-20-J02SX-02-401A
|
|
| Connecting mode | Bayonet connection |
| Protection level | IP67 |
| Cable specification | 4.0mm2 /12AWG |
| Diameter range | Φ9mm ~Φ12mm |
| Contact diameter×Qty | Φ2.7*2 |
| Current rating(A) | 20A |
| Operating voltage(AC.V.rms) | 300V |
| Withstand voltage(AC.V)1min | 2000V |
| Contact resistance | <1.0mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~85°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Shell&insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| bayonet connect; socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Marine equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
