| Brand Name: | cnlinko |
| Model Number: | LP-24-C10PE-01-001 |
| MOQ: | 2 |
| Price: | $5.17-6.03 |

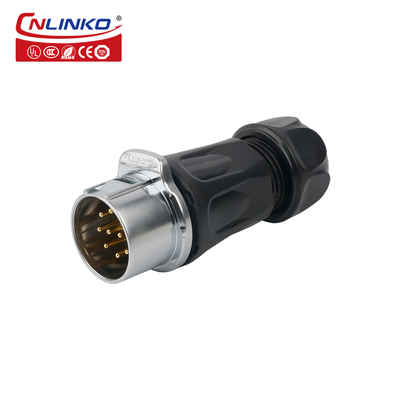

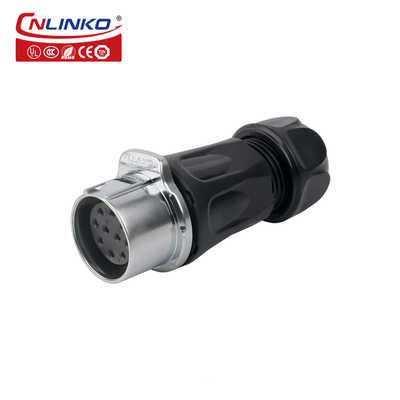

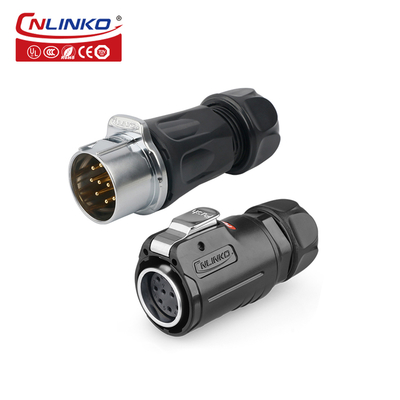

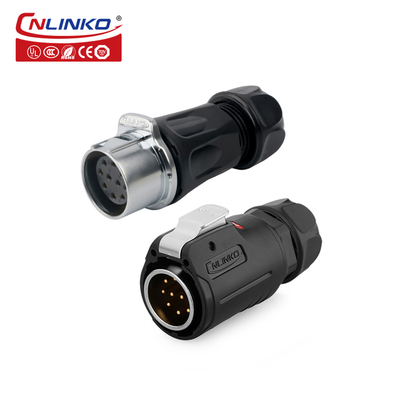

In Stock ISO9001 CNLINKO M24 10 pin aviation waterproof power signal connector
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP67 |
| Cable specification | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range | Φ8mm ~Φ14mm |
| Contact diameter×Qty | Φ1.5x10 |
| Current rating(A) | 10A |
| Operating voltage(AC.V.rms) | / |
| Withstand voltage(AC.V)1min | 2500V |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |

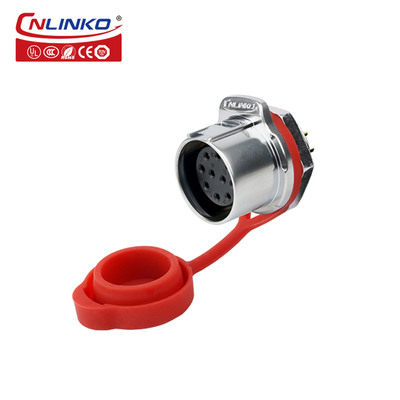

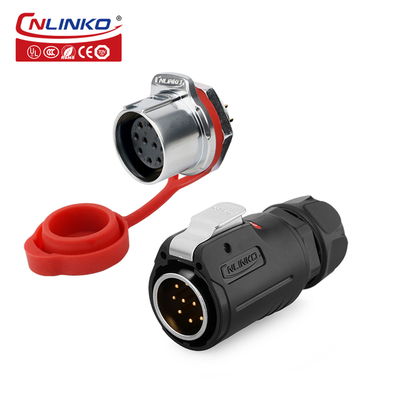

| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
