| Brand Name: | CNLINKO |
| Model Number: | YZ-20-J07PE-03-001 |
| MOQ: | 10 |
| Price: | $7.45-8.69 |
1.All zinc alloy shell,complete with electromagnetic and radio frequency interference. protection,while meeting the needs of high-end products to match.
2.Outer screw locking device a solid safety.

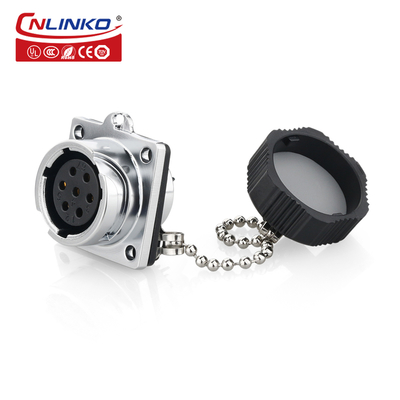

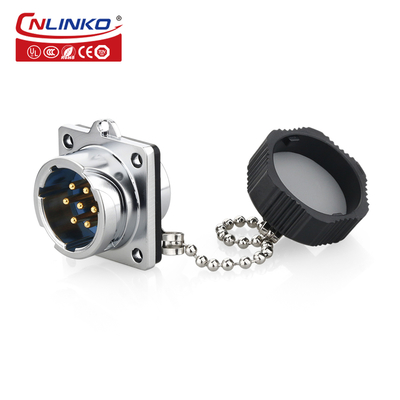

4.hanging dust cover design avoid matters; high safe performance,easy to operate ,
5.2-12 pin available
More Hot Products
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP67 |
| Cable specification | 1.0~1.5mm2 /18~16AWG |
| Diameter range | Φ7.0mm ~Φ10.0mm |
| Contact diameter×Qty | 7 Pin |
| Current rating(A) | 10A |
| Operating voltage(AC.V.rms) | 500V |
| Withstand voltage(AC.V)1min | / |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Shell&insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| 1/4 bayonet connect; socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
