| Brand Name: | CNLINKO |
| Model Number: | YM-20-C02PE-03-001 |
| MOQ: | 2 |
| Price: | US$5.25-6.25 |
Features:
multi-pins(2-12 PINGS) for varies industrial demands
PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation
gold-plated contact, high performance of corrosion resistance and electrical
onductivity effectively deal with temperature rise.
1/4 mount connector, easy operation and installation

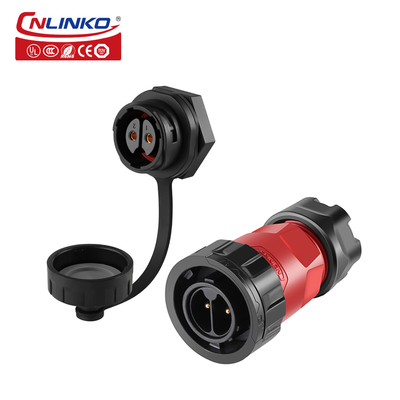

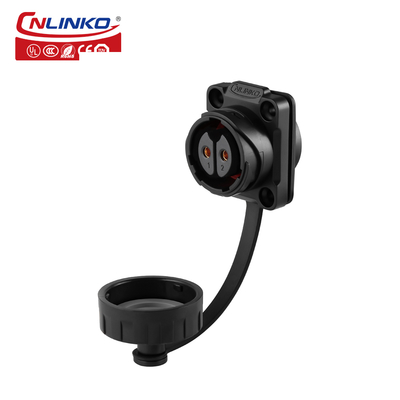

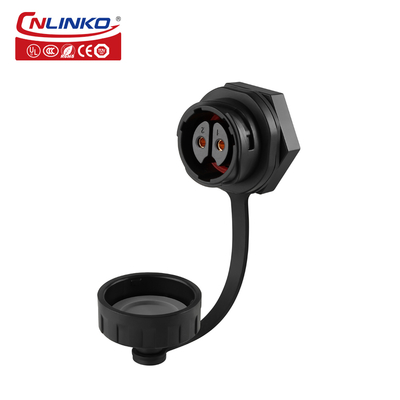

dustproof cover design under off-working condition
rated current is 12A rms
protection level:IP68
Widely used the following field:
1.LED screen industry
2.audio-visual equipment
3.medical equipment
4.industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.
6. waterproof square wire connector ip68
7. 2/3/4/5/7/9/12 pin connector
8. Electrical Products 2 Pin Auto Waterproof Connector Male and Female Pin Wire Harness Connector
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 2.5~4mm2 /14-12AWG |
| Diameter range | Φ9.0mm ~Φ13.0mm |
| Contact diameter×Qty | Φ2.7×2 |
| Current rating(A) | 20A |
| Temperature rise |
20A contact temperature below 30℃ 25A contact temperature below 40℃ 30A contact temperature below 50℃ |
| Operating voltage(AC.V.rms) | 500V |
| Withstanding voltage(AC.V)1min | 2500V |
| Contact resistance | <1mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| shell & Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| 1/4 bayonet connect; socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
Certifications
