| Brand Name: | CNLINKO |
| Model Number: | YW-20-C02PE-03-001,YW-20-J02SX-03-401 |
| MOQ: | 10 |
| Price: | $6.20-7.20 |

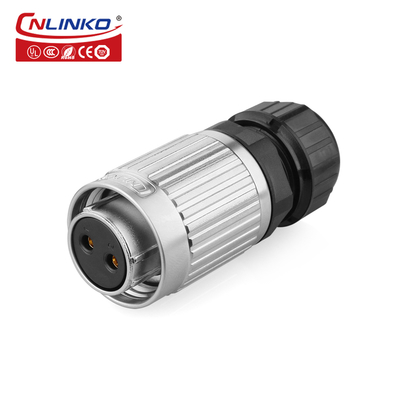

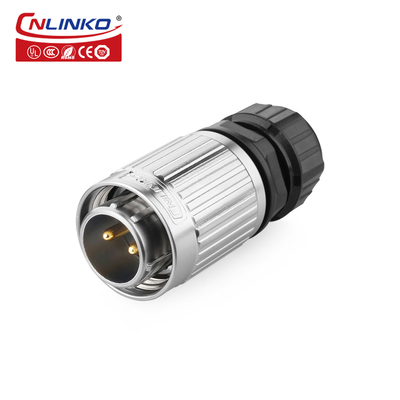

YW waterproof connector,zinc alloy shell,effective safety and signal shielding,using the locking screw,more secure and reliable.
1.All zinc alloy shell,complete with electromagnetic and radio frequency interference protection,while meeting the needs of high-end products to match
2.Outer screw locking device,a solid safety.
3.16MM and 20MM optional mounting dimensions.
4.Quick and easy nut locking system design.

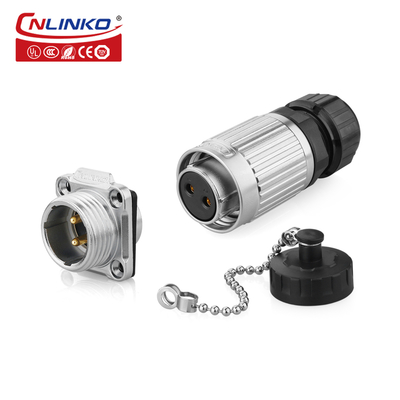

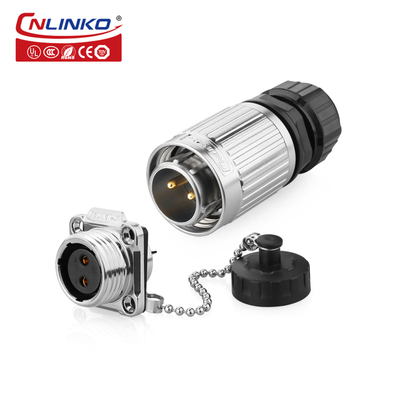

5.Hanging dust cover design avoid matters;high safe performance,easy to operate.
6.2-12 pins for choice.
7.5-20A rms rated current.
8. metal fence connectors
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP67 |
| Cable specification | 2.5mm2 ~ 4mm2 /14~12AWG |
| Diameter range | Φ8mm ~Φ12mm |
| Contact diameter×Qty | Φ2.7×2 |
| Current rating(A) | 20A |
| Operating voltage(AC.V.rms) | 500V |
| Withstand voltage(AC.V)1min | 2500V |
| Contact resistance | <1mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |

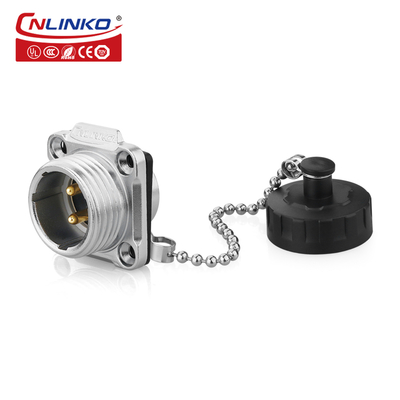

| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
