| Brand Name: | CNLINKO |
| Model Number: | LP-12-C06PE-03-001 |
| MOQ: | 2 |
| Price: | $8.82-9.82 |
- Multi-style inner core design (2-8 cores), in line with various industrial requirements, the signal and power supply are compatible at the same time.
- Spring-pressed design, tightly docked, safe and secure.
- The orientation is strong, and blind insertion can be realized, and the humanized design in the true sense.
-3 core lock screws and solderable optional connection, fully compatible with outdoor installation work.
- Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in temperature rise caused by current.
- Thermoplastic high temperature resistant plastic case, stable electrical performance, high strength, high temperature resistance and corrosion resistance.
- Unique docking design, solid extension of infinite line length.
-Flange 4 hole mounting, stable and impeccable, threaded single hole housing installation, suitable for circular opening industrial installation.
- The product complies with IP67 protection in the assembled state.

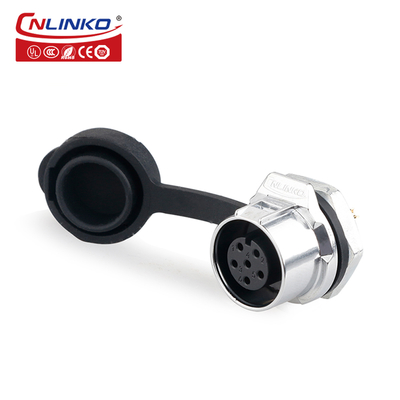

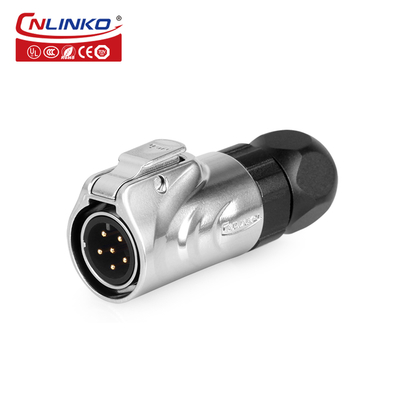

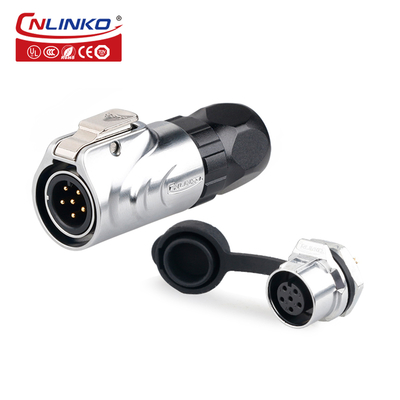

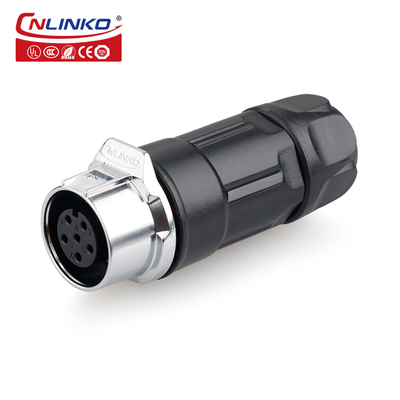

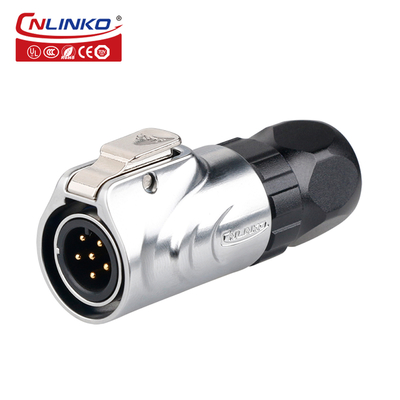

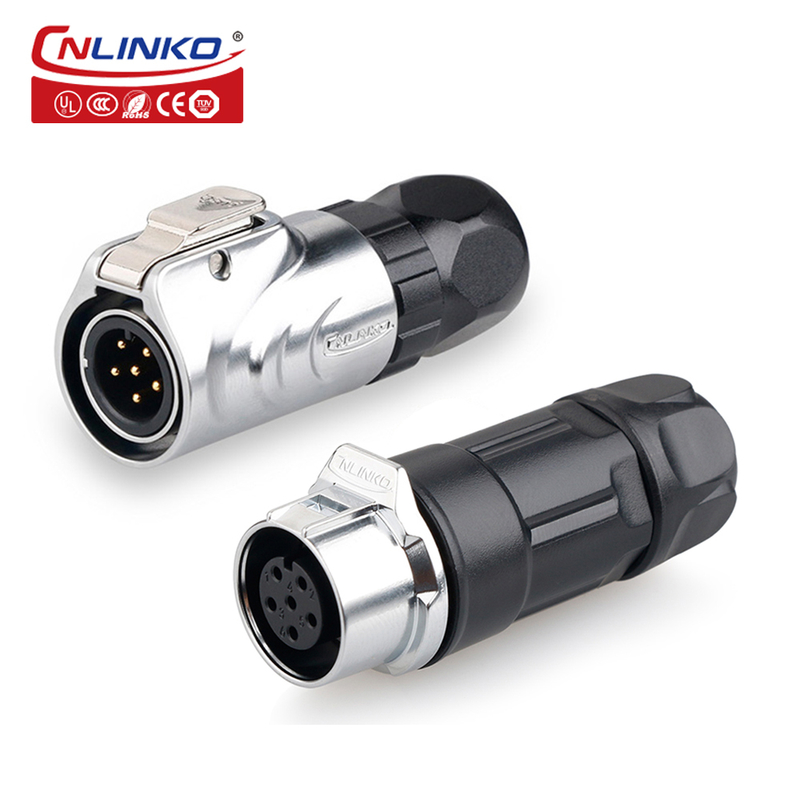

CNLINKO waterproof ip67 6 pin male female connector
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 0.3~0.75mm2 /22~20AWG |
| Diameter range | Φ3mm ~Φ6mm |
| Contact diameter×Qty | Φ1.0x6 |
| Current rating(A) | 5A |
| Temperature rise | / |
| Withstanding voltage(AC.V)1min | 1500V |
| Contact resistance | <5mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
