| Brand Name: | Cnlinko |
| Model Number: | LP-16-C02PE-03-001 |
| MOQ: | 2 |
| Price: | $6.37-7.43 |

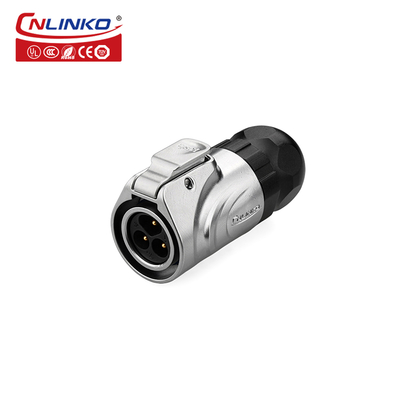

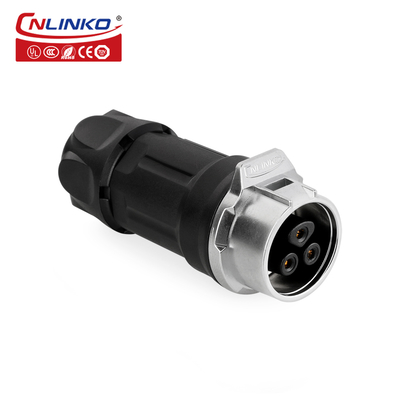

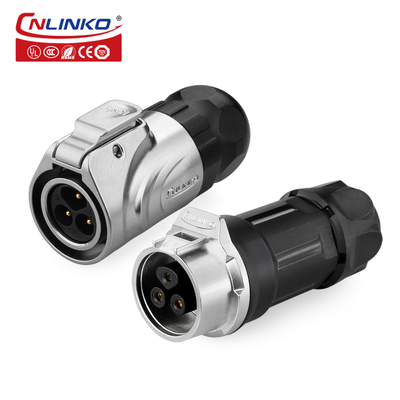

IP67 waterproof 2 pin male female power connector manufacturer
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 1.0~1.5mm2 /18AWG |
| Diameter range | Φ3mm ~Φ8.5mm |
| Contact diameter×Qty | Φ1.5×2 |
| Current rating(A) | 10A |
| Temperature rise |
10A contact temperature below 30℃ 12A contact temperature below 40℃ 15A contact temperature below 50℃ |
| Operating voltage(AC.V.rms) | 500V |
| Withstanding voltage(AC.V)1min | 2500V |
| Contact resistance | <2.5mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| shell & Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |

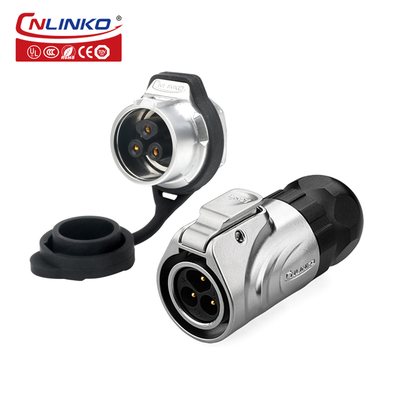

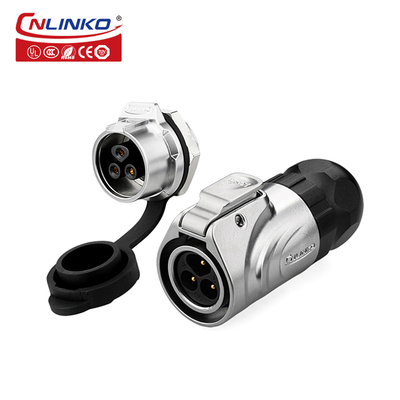

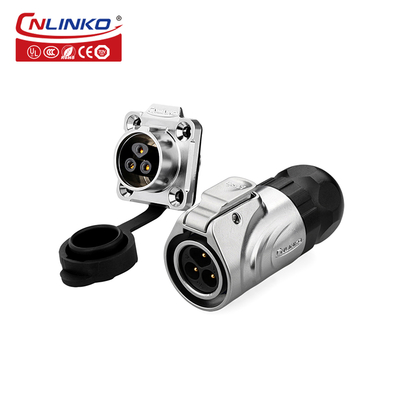

| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
