| Brand Name: | Cnlinko |
| Model Number: | DH-24-USB3.0-P01&DH-24-USB3.0-S01 |
| MOQ: | 2 |
| Price: | $12-13 |
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 26AWG-24AWG |
| Diameter range | Φ5mm ~Φ6.5mm |
| Contact diameter×Qty | 9PIN(3.0)&4PIN(2.0) |
| Current rating(A) | 1.5A |
| Temperature rise |
/ |
| Operating voltage(AC.V.rms) | / |
| Withstanding voltage(AC.V)1min | 1000V |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| shell & Insulated parts | High performance engineering plastics |

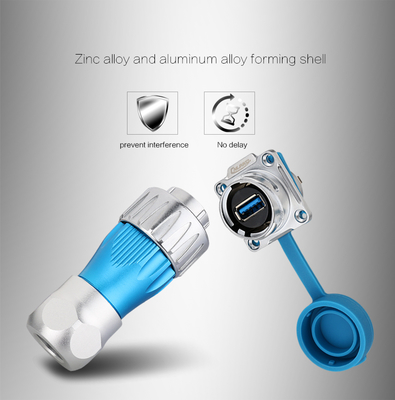

| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |

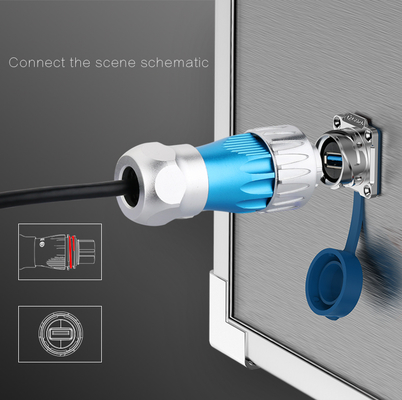

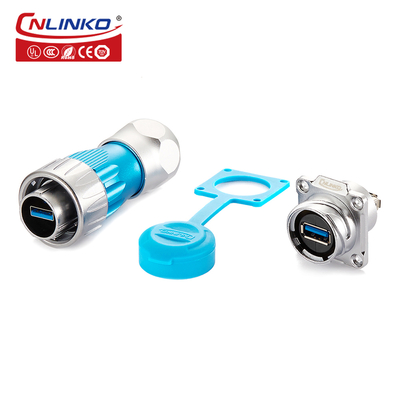

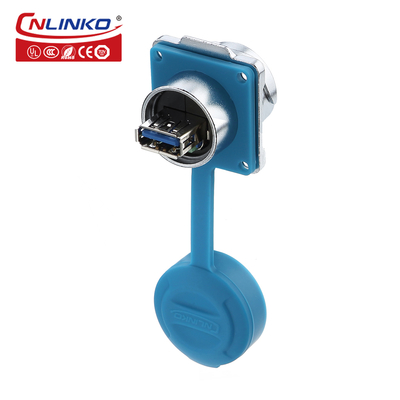

| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
