| Brand Name: | CNLINKO |
| Model Number: | YM-24-C/USB3/016/PE-42-001 |
| MOQ: | 10 |
| Price: | $8.35-9.35 |
Features:
USB Data Connector for varies industrial demands
PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation
gold-plated contact, high performance of corrosion resistance and electrical
onductivity effectively deal with temperature rise.
1/4 mount connector, easy operation and installation
dustproof cover design under off-working condition
rated current is 12A rms
protection level:IP65/67

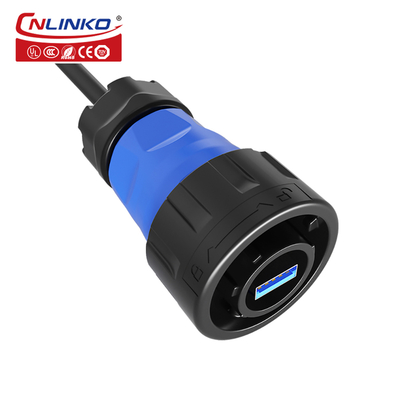

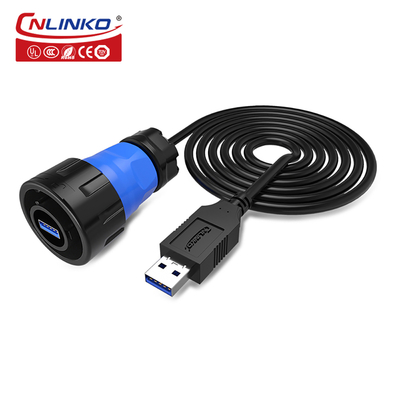

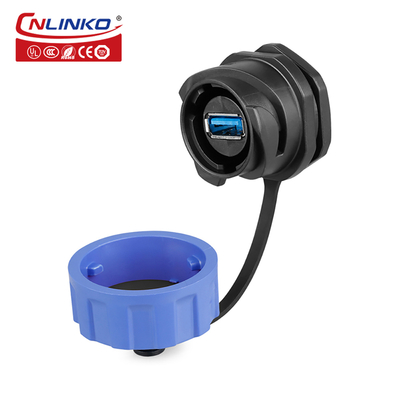

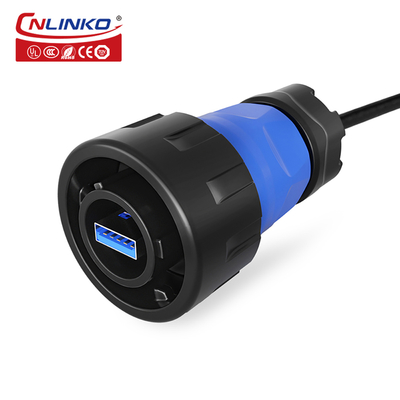

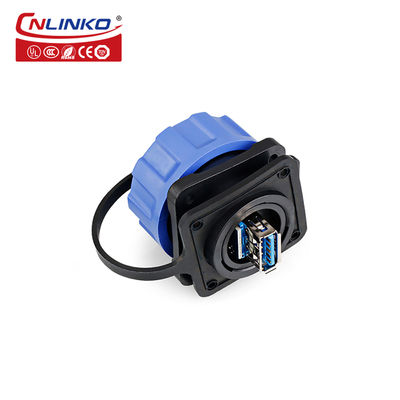

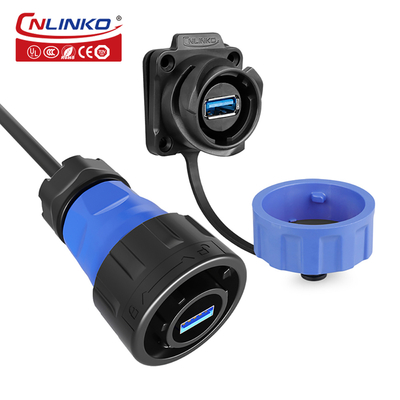

Free sample cnlinko factory price waterproof IP67 USB data connector
| Specifications | |
| Connecting mode | USB data connector |
| Protection level | IP65/IP67 |
| Cable specification | 2.5~4mm2 /14-12AWG |
| Diameter range | Φ5.0mm ~Φ6.5.0mm |
| Current rating(A) | 1.5A |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| shell & Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| 1/4 bayonet connect; socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
