| Brand Name: | CNLINKO |
| Model Number: | YM-24-C/USB3/016/PE-42-001 |
| MOQ: | 10 |
| Price: | $8.35-9.35 |
Features:
USB Data Connector for varies industrial demands
PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation
gold-plated contact, high performance of corrosion resistance and electrical
onductivity effectively deal with temperature rise.
1/4 mount connector, easy operation and installation
dustproof cover design under off-working condition
rated current is 12A rms
protection level:IP65/67
Widely used the following field:
1.LED screen industry
2.audio-visual equipment
3.medical equipment
4.industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.
6. waterproof square wire connector ip68
7. USB data connector
8. Electrical Products 2 Pin Auto Waterproof Connector Male and Female Pin Wire Harness Connector

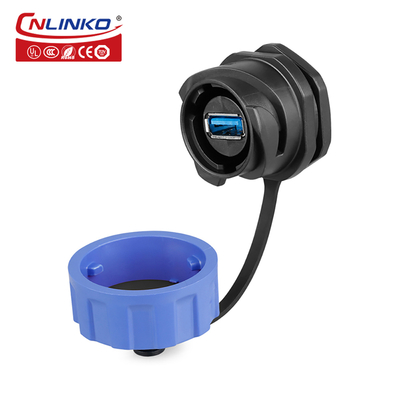

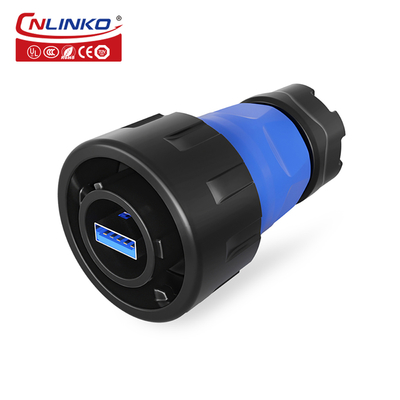

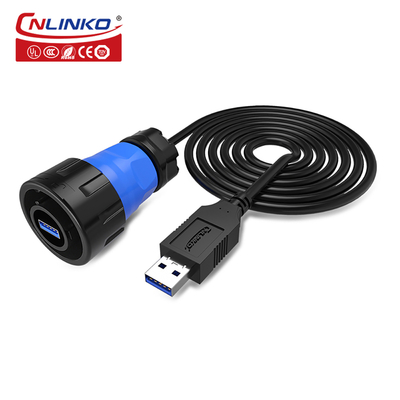

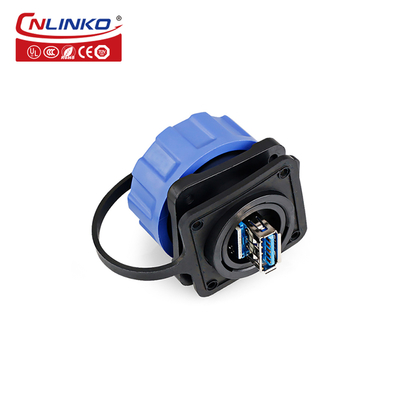

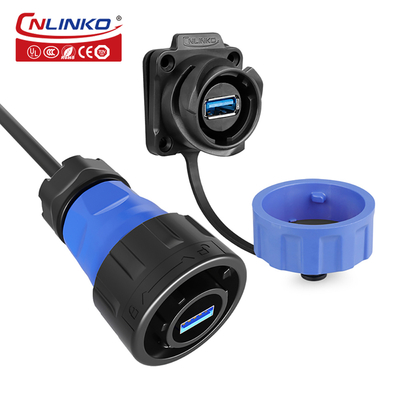

Free sample cnlinko factory price waterproof IP67 USB data connector
| Specifications | |
| Connecting mode | USB data connector |
| Protection level | IP65/IP67 |
| Cable specification | 2.5~4mm2 /14-12AWG |
| Diameter range | Φ5.0mm ~Φ6.5.0mm |
| Current rating(A) | 1.5A |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| shell & Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| 1/4 bayonet connect; socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
