| Brand Name: | Cnlinko |
| Model Number: | DH-24-C10PE-01-001 |
| MOQ: | 2 |
| Price: | $18.10-19.10 |

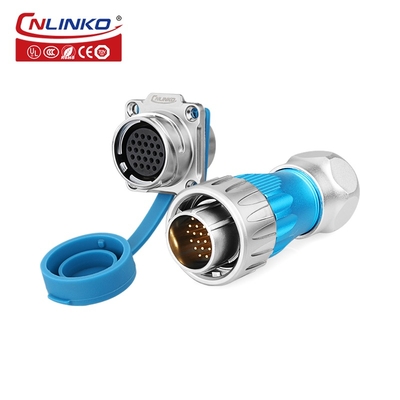

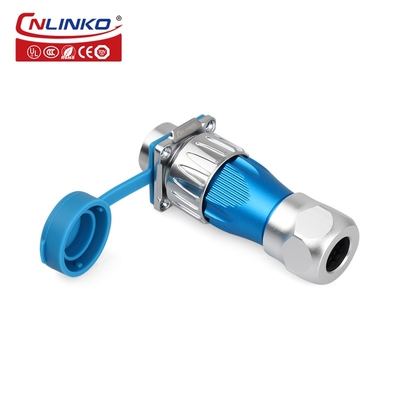

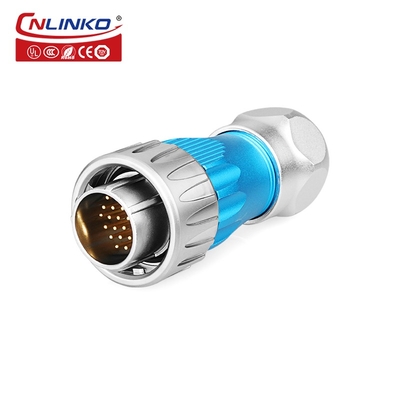

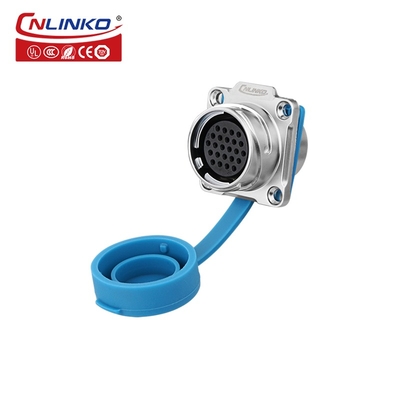

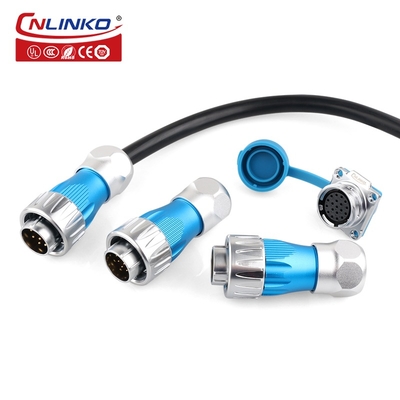

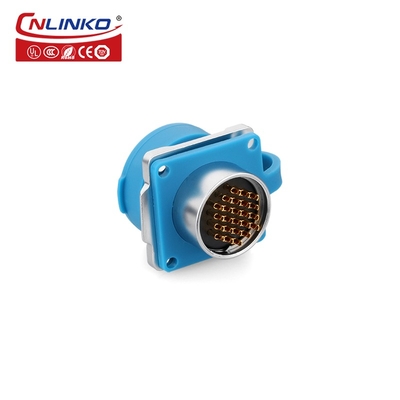

Metal Shell M24 10 pin Waterproof circular connector automotive 10 contact power socket
1.Three positioning, designing with wave spring knob, the outer ring card point locking snap engaged with the socket, easy to operate with uniform intensity engaging, and keeping the current and signal transmission more stable.
2.Using wave spring structure,making elastic wave spring stranded automatically while connection.
3.Copper needle retainer designing, copper welding operations and install socket separated, making the products simple and convenient operated in any environments .
4.Using outer alloy ring, keeping the plug and socket more stable while closed , making the power supply or signal transmission more stable and comparable while connection.
5.Using tail jaws designing, to tighten and twisted the wire more effective, improving the waterproof rating ,tensile strength , and making the nuts anti-back effectively.
6. Waterproof clip coil designing, making the products have better waterproof rating while closed.
7. Waterproof IP65/IP67 while connect
| Specifications | |
| Connecting mode | 1/4 bayonet connecting type |
| Protection level | IP67 |
| Cable specification | 2.5mm2 ~ 4mm2 /14~12AWG |
| Diameter range | Φ8mm ~Φ12mm |
| Contact diameter×Qty | Φ1.5x10 |
| Current rating(A) | 10A |
| Operating voltage(AC.V.rms) | 400V |
| Withstand voltage(AC.V)1min | 2500V |
| Contact resistance | <2.5mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Shell | Zinc Alloy |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| 1/4 bayonet connect; socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
