| Brand Name: | CNLINKO |
| Model Number: | DH-20-C04PE-01-001 |
| MOQ: | 2 |
| Price: | $9.70-10.70 |
Features:
1. Use alloy external protective material to effectively reduce electromagnetic and signal RF interference generated by external high current.
2. Three-point spiral locking with high standard.
3. Optional shell color to meet different environmental requirements.
4. 2-7PIN power supply, 9-12PIN signal is optional.
5. Rated current: 5A/12A/20A rms.
6. The IP65/IP67 protection level is met when the product is connected.
| Specifications | |
| Connecting mode | 1/4 bayonet connecting type |
| Protection level | IP67 |
| Cable specification | 2.5mm2 ~ 4mm2 /14~12AWG |
| Diameter range | Φ9mm ~Φ13mm |
| Contact diameter×Qty | Φ2.7x4 |
| Current rating(A) | 20A |
| Operating voltage(AC.V.rms) | 500V |
| Withstand voltage(AC.V)1min | 2500V |
| Contact resistance | <1mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |

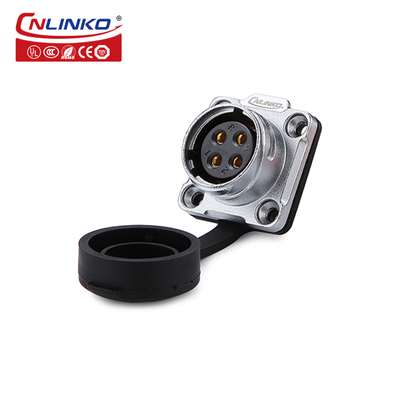

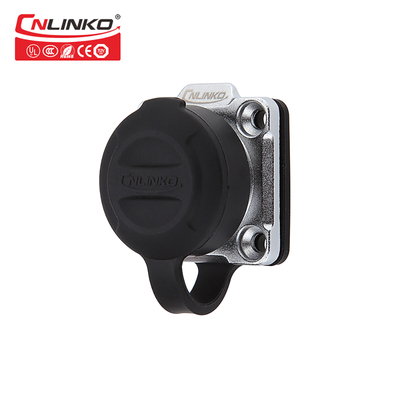

| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
