| Brand Name: | CNLINKO |
| Model Number: | YM-20-C05PE-02-001 |
| MOQ: | 2 |
| Price: | US$3.11-3.63 |
Features:
1.Multi-core design styles(2-12 cores),in line with the diversity of industrial demand,signal and power compatible match.
2.PBT material of the protective housing,with characters of fire safety,compression,anti-explosion and anti-deformation
3.Gold-plated contacts,high-strength corrosion resistance and electrical conductivity,effective response to temperature changes in current.
4.1/4 quick bayonet coupling,simple operation,easy installation.

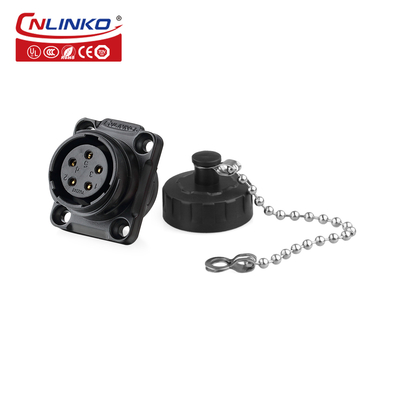

5.Dustproof cover design under off-working condition.
6. 20A rms current rating.
7. Protection level:IP68

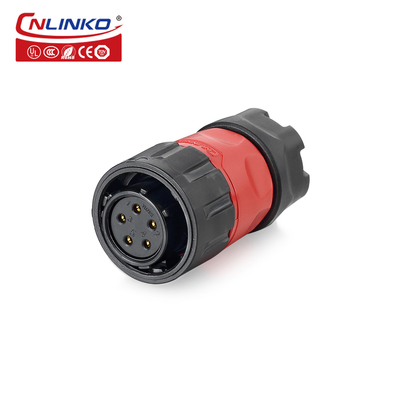

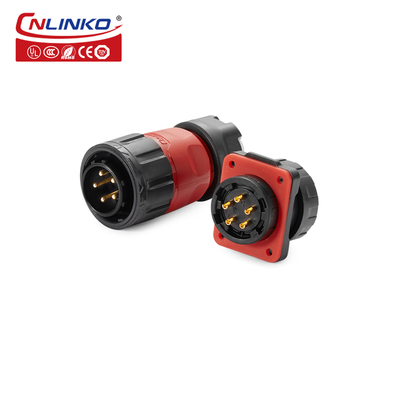

YM series connectors,using high-end injection molding PBT material,ensuring stable performance,multi-core design of the product,while meeting the needs of a number of power and signal equipment,the central shell distinctive logo,highlighting the latest design cnlinko.
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 1.0mm2 ~ 1.5mm2 /18~16AWG |
| Diameter range | Φ7mm ~Φ10mm |
| Contact diameter×Qty | Φ1.8×5 |
| Current rating(A) | 10A |
| Temperature rise |
20A contact temperature below 30℃ 25A contact temperature below 40℃ 30A contact temperature below 50℃ |
| Operating voltage(AC.V.rms) | 250V |
| Withstanding voltage(AC.V)1min | 2500V |
| Contact resistance | <1mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| shell & Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |

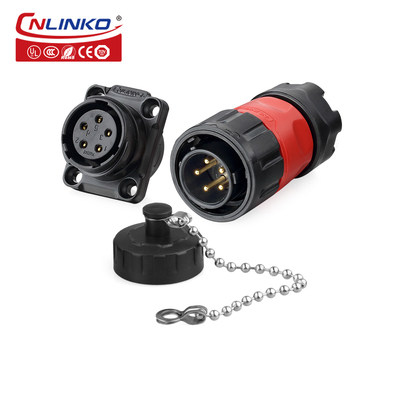

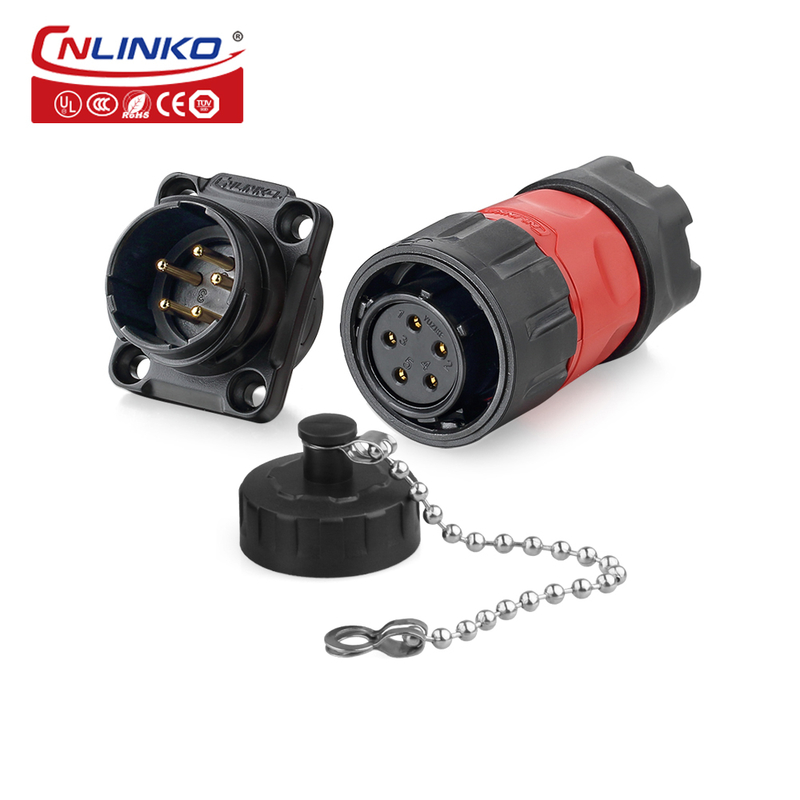

| 1/4 bayonet connect; socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
