| Brand Name: | CNLINKO |
| Model Number: | BD-24-C19PE-02-001 |
| MOQ: | 2 |
| Price: | US$10.60-11.60 |
Features:
Multi-purpose design (power, signal, data) for a wide range of application needs;
Fully plastic and all-metal two-component design, with strong applicability and complete electromagnetic and radio frequency interference protection;
Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, temperature changes that can be effectively generated by current;
PBT material shell, stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;
IP67 protection level in connection state;
Rated current 5A/10A/25A;
One-piece streamlined design.
| Specifications | |
| Connecting mode | Bayonet connection |
| Protection level | IP65/IP67 |
| Cable specification | 2.5~4mm2 / 14~12AWG |
| Diameter range | Φ8mm~Φ12mm |
| Contact diameter×Qty | Φ3.0×3 |
| Current rating(A) | 25A |
| Temperature rise |
20A contact temperature below 30℃ |
| Operating voltage(AC.V.rms) | 500V |
| Withstanding voltage(AC.V)1min | 2500V |
| Contact resistance | <1.0mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |

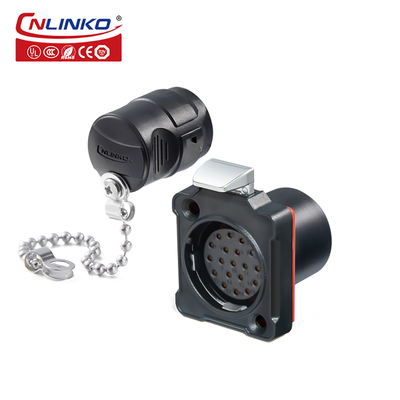

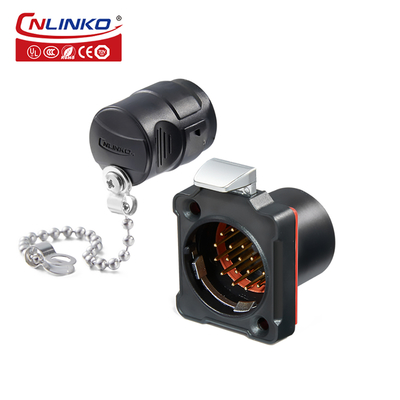

| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
Certifications
