| Brand Name: | CNLINKO |
| Model Number: | BD-20-C05PE-03-001A |
| MOQ: | 10 |
| Price: | US$4.99-5.82 |

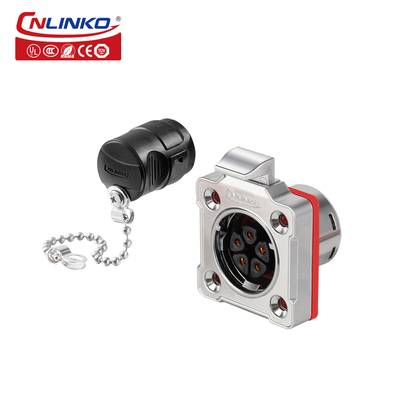

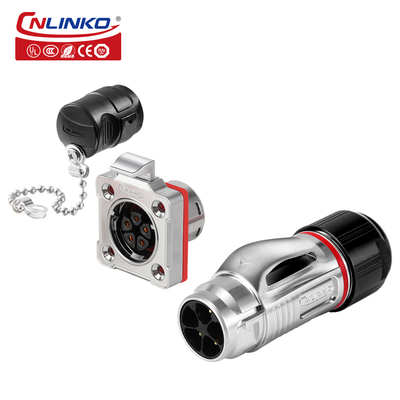

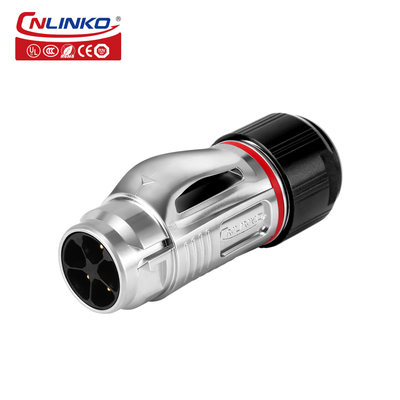

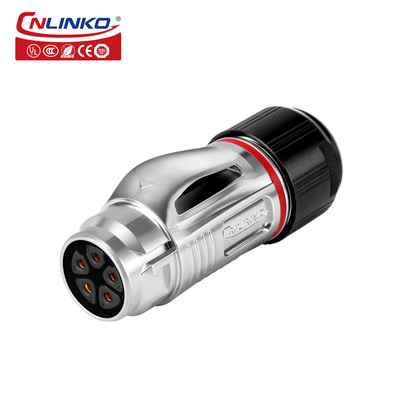

M20 5Pin IP65 Waterproof Solder Copper pin Connector Plug
| Specifications | |
| Connecting mode | Snap connection |
| Protection level | IP65/IP67/IP68 |
| Cable specification | 1.5mm2 /16AWG |
| Diameter range | Φ9mm ~Φ12mm |
| Contact diameter×Qty | Φ1.8*5 |
| Current rating(A) | 10A |
| Temperature rise | 10A Per contact at 30k
|
| Operating voltage(AC.V.rms) | 300V |
| Withstanding voltage(AC.V)1min | 1500V |
| Contact resistance | 3.0mΩ |
| Insulation resistance | ≥500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~+85°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| shell & Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67/IP68) | |
| Vibration resistance,impact resistance,stretching resistance | |
| One-button button locking | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
