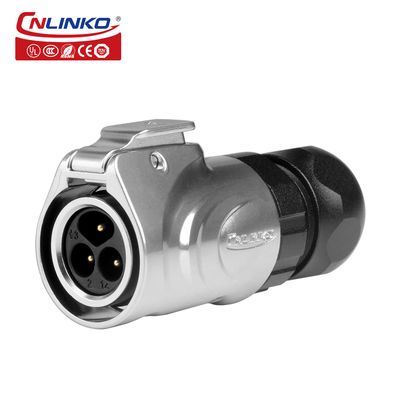

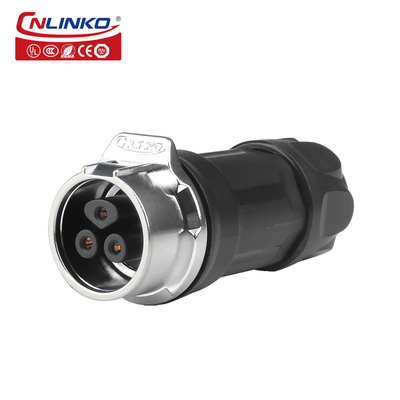

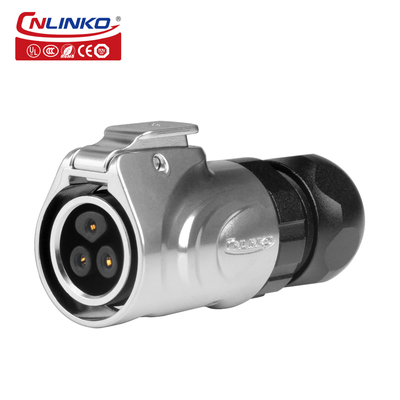

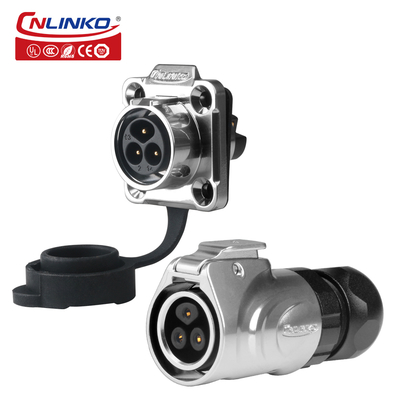

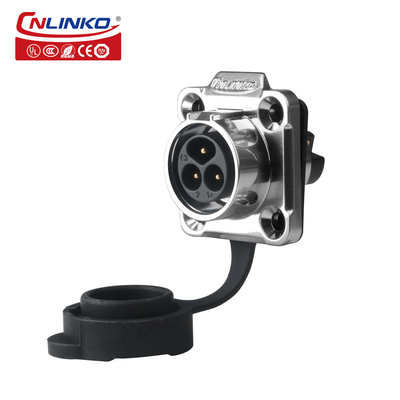

Cnlinko LP-16-3 Pin Metal Wiring Screw Circular Waterproof Aviation Plug Connector

Name: Cnlinko LP-16-3 Pin Metal Wiring Screw Circular Waterproof Aviation Plug Connector
Brand: Please input your companyname!
SKU: LP16
Price: 14.34 USD
Availability: InStock

Brand Name:	CNLINKO
Model Number:	LP16
MOQ:	2
Price:	$13.34-15.56

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Signal

Application:

Audio & Video

Gender:

Male And Female

Model:

LP16 Series 2/3 Pole Locking Screw Type

Rated Current:

10A

Working Voltage:

400V AC

Withstanding Voltage:

2000V AC

Contact Resistance(Max):

<3mΩ

Insulation Resistance(Min):

500MQ

Mechanical Life:

>500 Times

Wrench For Locking Screws:

Hexagon Socket Wrench 0.9

Salt Spray:

PH6.5-7.2, NaCl,5% 48H

Product Description

Product Paramenters

Model	LP16 Series 2/3 pole locking screw type
Rated current	10A
Working Voltage	400V AC
Withstanding Voltage	2000V AC
Mechanical life	>500 Times
Wrench for locking screws	Hexagon socket wrench 0.9
Salt spray	PH6.5-7.2, NaCl,5% 48H
Protection level	IP68
Wire gauge	1.0~1.5mm2/18~16AWG

Company Profile

FAQ

Q1:What are connectors?
A1:Connectors are connected to the electrical and mechanical components of electrical circuits.They are widely used in various
electrical circuits, plays the role of connecting or disconnecting the circuit.
Q2:What classification do connectors have?
A2: In accordance with the frequency points, a high-frequency connector and the low frequency connectors; in accordance with the
shape divided circular connectors, rectangular connectors; in accordance with the zoning, there are connectors for printed boards,
cabinets, socket connector, connectors for audio equipment, power connector, connectors, etc. for special purposes.
Q3:What is rated voltage?
A3:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing
between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its
functions.
Q4:What is rated Current?
A4: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in
general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the
requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact
resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation
of air exposure on the surface of the coating to soften, resulting in failure.
Q5:Why choose cnlinko?
A5: Our product have passed UL,CUL,CCC,CE and ROHS certification. Use PBT material that import from abroad with
stable,compression, anti-explosion and anti-deformation; Use Zinc alloy material against high frequency noise and electromagnetic
interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal
with temperature rise.
Q6:Is there cheap shipping cost to import to our country?
A6: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest
via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the
best solution for you
